CA-660

CA-660, SN: 11486

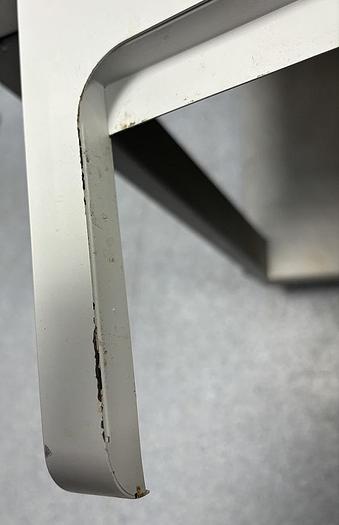

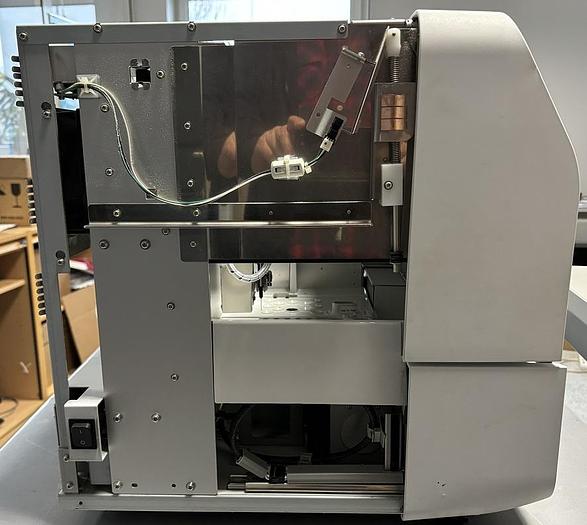

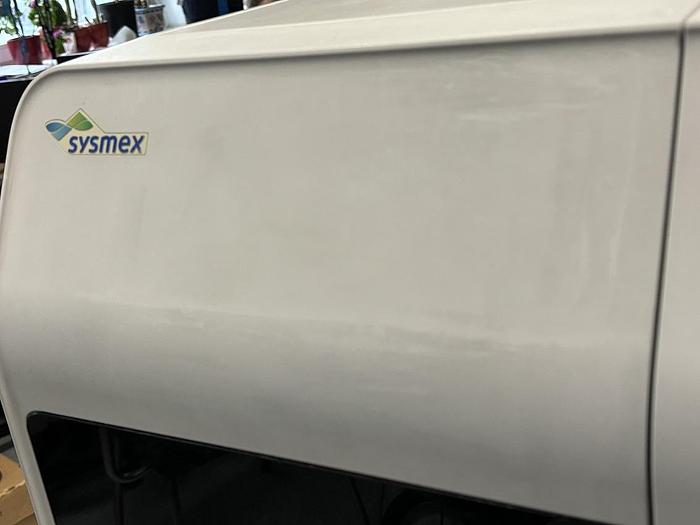

Analyser CA-660, SN: 11486, production date: 04/2013, power supply: 100-240VAC, power: 300VA. Housing without discolouration. The electronics start up correctly. LED calibration message appears. ‘Ready’ label appears on the screen. English language. Time correction has been performed. Counter status: 15635/15635/6055. Checked correct operation of: main fan, printer, mixer, drawer lock, display, touch panel. Checked selected sensors: stop, cover, probe crash, liquid sensor, sample rack. Maintenance of the interior and exterior surfaces was carried out, foreign labels removed. Pneumatic/hydraulic system tight, pump starts. Handheld barcode scanner (Honeywell, 1900GSR-1, SN: 12208B2857) checked - operational. Replacement of front cover and right sheet metal - swapped with analyser with SN: 25967 (they were in good condition, now the cover has damage-scratches and the sheet metal has rusted edges). In addition, the left sheet metal has minor chipping. We suggest considering the possibility of painting the case.  Information on the contents of the kit and its shortcomings is given below.

Lp.    Part No. Descripion / Description / Should be - number of pcs. / Missing - pcs.

I. Prime items

1. AG818297 Program Card, / Opr. card / .......................................................... 1 / 0

2. 7327520 Sample Rack (White) / sample rack / ........................... .................. 1 / 0

3. CT904571 2D barcode reader (1900GSR-1) / Handheld 2D barcode scanner / ................1 / 0

4. BV088995 KIT NO.191 (Connection cable of 2D barcode reader) / Cable r. s. k.     / 1 / 0

5. AS244534 Filter No.598 / Lower air filters / .................................................2 / 0

6. 4335814 Trap Chamber Complete / Trap chamber with fittings and hose / ............. 1 / 0

7. 663-7175-7 Screw w/Knob TL-233-3 / Trap screw with high head / ..................... 1 / 0

8. BP577416 Rinse Bottle Assy (5L), / Water bottle with connections / ......................... 1 / 0

9. AS977096 Waste Bottle Assy (5L) / Waste water bottle with connections / ......................... 1 / 0

10. AJ387179 Reagent Rack Assy, / Reagent rack, 4+6=10 items / ................. 1 / 0

11. AJ046225 Reaction Tube Trash Box / Right Reaction Tube Trash Box / ....................... 1 / 0

12. CQ773511 Holder Assy No.181 (Reaction Tube Rack) / Reaction rack / ............. 4 / 2

13. 363-2558-6 Holder No.89 (Adapter of Reagent Rack) / Reagent Adapter / ......... 2 / 2

14. 663-5117-3 Sample Tube Spacer 13 Phi / STAT adapter (plastic) / .................... 1 / 0

15. power cable for 230V / .............................................................................. 1 / 0

II. Secondary items

16. 24192236 Ferrite Core, / Ferrite electrical filter / ........................................... 1 / 1

17. AU071498 Instruction For Using Ferrite Core, Procedure NO.31 / Ins. m. f. f. / .......... 1 / 1

18. BX177453 Label No.966 (Reagent Indication Mark) / Label / ............................  1 / 1

19. AX712917 Kit No. 430 (Contains: Trash Box Liner CA6 (3 pcs.), CM221346) / Ins. / .   1 / 1

20. BC963426 Fuses / Spare fuses / .....................................................  2 / 2

21. original carriage protection components (hose, 4 screws, 2 profiles) / ................. 1 / 1

22 Original packaging / ................................................................................. 1 / 1

23. connection plugs / ........................................................................................ 2 / 2

24. RS232C cable / ...........................................................................................  1 / 1

25. hydraulic plugs / ......................................................................................  4 / 4

26. UPS power cable / ...................................................................................  1 / 1

27. analyser protection foil / .............................................................................  1 / 1

28. operation manual / .......................................................................................... 1 / 1

III. Consumable items

29. 541-1352-1 Push Vial PV-10 / Milk containers with lid 10 pcs. / ...................... 2 / 2

30. 013-1771-4 SLD Vial Assy (10/Pack) / Milk containers with white cap 10 pcs. / ... 1 / 1

31. 424-1160-8 Sample Cup Conical (4mL) / Sample Cups / ................................ 1 / 1

32. 541-0541-8 Reaction Tube / ................................................. 60 / 60

33. AH042068 Thermal Paper CL5840 / Printer Paper / ......................................... 2 / 2
